Explore Naming Conventions & Terminology
STANLEY Access Technologies uses a numbering system to describe our products. For example, a "5200" is an automatic slide door with panels that are telescoping and partially breakout because 5 represents telescoping and 2 represents partial breakout.
- "2" Partial Breakout - meaning only the sliding panel can be broken out (swings open) at any point of travel to create a larger opening for emergency egress. Example: Dura-Glide 2000 and Telescoping 5200. Click here to watch the video.
- "3" Full Breakout meaning all door panels (sliding and stationary) can be broken out (swing open) at any point of travel to create a larger opening for emergency egress. Example: Dura-Glide 3000 and Telescoping 5300. Click here to watch the video.
- "4" Manual swinging panels. Example Dura-Care 7400.
- "5" Telescoping panels. Example 5200.
- "6" Folding panels. Example Dura-Care 7600.
- "7" Manual sliding panels: Example: Dura-Care 7000, our Intensive Care Unit door.
- "TL-FBO" Trackless Full Breakout (usually on our manual sliding ICU doors). Example Dura-Care 7200 TL-FBO.
- "FBO" Full Breakout.

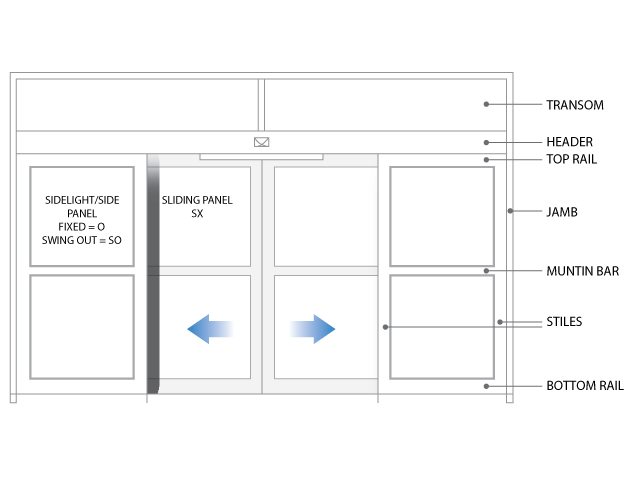

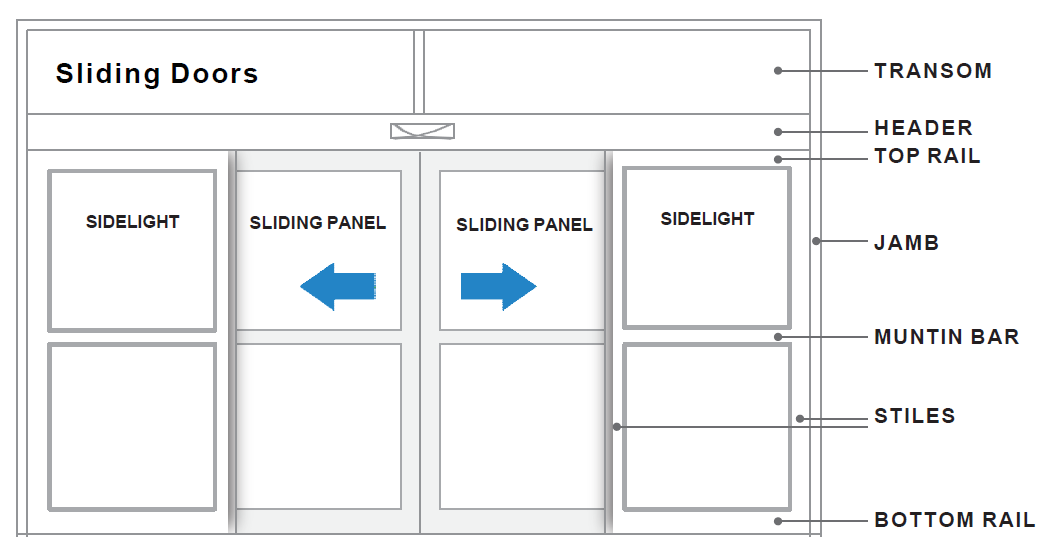

X Panel: Slide
S Panel: Swing
O Panel: Fixed
P Panel: Partial panel provides a guide for a 2000 SX panel to slide on and provides weather sealing.
A combination of letters creates product features. For example, SX panel slides and swings open for emergency egress.

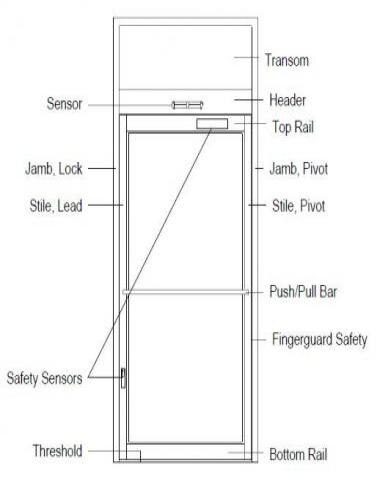

- Active Door: The door that includes the locking mechanism.
- Breakout: The ability to allow emergency egress through the door in a manner different from its normal operations – an IN door swinging out.
- Center Pivot: Condition of pivoting a swing door about a point on the centerline of the door panel, 3 ¾” from the pivot jamb. Required for breakout.
- Concealed Application: Operator and casing contained within framing system.
- Door Arm: Member which mechanically links operator output spindle to door. May be a single piece located in the rail of the door (concealed application), or complex device utilizing connecting rods and slides (visible application).
- Double Egress: A pair of swinging doors swinging simultaneously in opposite directions.
- “In” Door Application: Door swings away from visible header box.
- Left Hand Operator: As the user approaches the door from the push side, the door swings to the left.
- “Out” Door Application: Door swings away from visible header box.
- Reveal: Dimension from surface upon which operator will be mounted to face of door being automated. Often applying to visible, swinging applications.
- Right Hand Operator: Opposite to left hand (see left hand operation)
- Side Clearance: Distance from the face of the door in the full open 90 degree position to the outer most point on the operator linkage.
- Visible Application: Operator contained in a case, surface-mounted to the door frame.
